MATE MGA 1100

MATE MGA 1100 Unit Background Removed
4 Gas
All Gas
Calibration

The MATE MGA 1100 is still the analyzer of choice in breath by breath measurement, many cardiac, and pulmonary research facilities. With it's ultra fast response time (<150 ms for all standard gases), short transport time (<300 ms for all standard gases), and all measured gases output simultaneously/parallel (with noise level less than 50 mv for all standard gases), the MATE MGA 1100 is preferred over many of the newer "updated" scanning units on the market today.

Nitrogen
Oxygen
Carbon Dioxide
Argon
Helium
Acetylene
C 18O



The MATE MGA 1100 Medical Gas Analyzers are fixed collector, magnetic sector mass spectrometers designed for monitoring respiratory, anesthetic and many other gases. These analyzers are currently the most advance instruments available for precisely measuring gas concentrations. They are reliable, stable, extremely accurate, real-time analysis, and have ultra fast response time for multiple gases.

The MGA is the only multi gas analyzer that can provide fast breath-by-breath data.

Base gases are nitrogen, oxygen, and carbon dioxide. Optional additional gases include: acetylene, argon, neon, sulfur hexafluoride, dimethyl ether, helium, nitrous oxide and water. Other gases are available, please contact us for more information. (314) 421-0944



These are refurbished with a full year warranty.

MATE MGA 1100 RIO+
Mass Spectrometer: The Ultimate Multi-Gas Analyzer

Precision multi-gas, ultra fast response gas analysis in medical research. Digitized with remote accessibility.

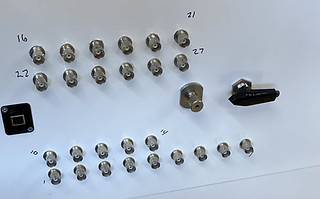

MATE RIO+ (Raw Input Output) passes the values of 27 analog voltage input channels through to custom software via a data stream and passes data received from custom software through to 16 analog voltage output channels.

Standard model for N2, O2, CO2, & Ar

Additional gases on request

Hardware Specifications

Fixed Magnetic Sector Mass Spectrometer

Dual Filaments

Digital Turbomolecular High Vacuum Pump

Oil-less Digital two-in-one Diaphragm Vacuum Pump

Typical gases analyzed (Contact us for a complete list):

Nitrogen

Oxygen

Carbon Dioxide

Argon

Helium

Acetylene

C18O

Specifications:

Mass range:                                 2 - 136

Response Time:                          Less than 150ms (with 6 foot capillary)

Gas Sampling Rate:                    60cc/min

Data Sampling Rate:                  200Hz Optional 10,000Hz

Data Output:                               0-10VDC (BNC connector per gas)

Output/Input MATE RIO+:        (bring data directly into/out without an additional DAQ)

Analyzer cabinet size:                36"H x 18"W x 18"D
Laptop:                                        Windows (MA TECH supplied)
Weight:                                       140 lb

For information please call (314) 421-0944
